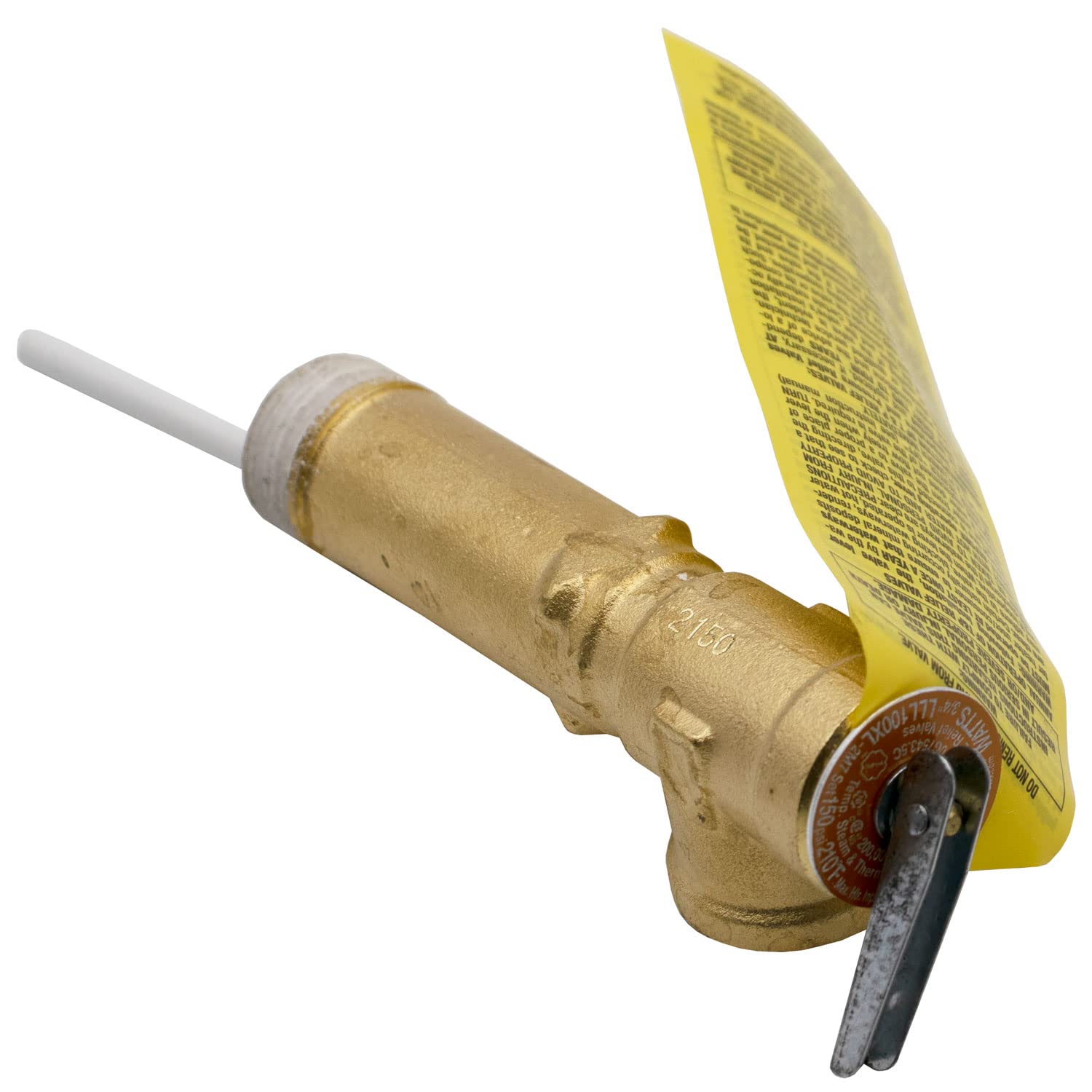

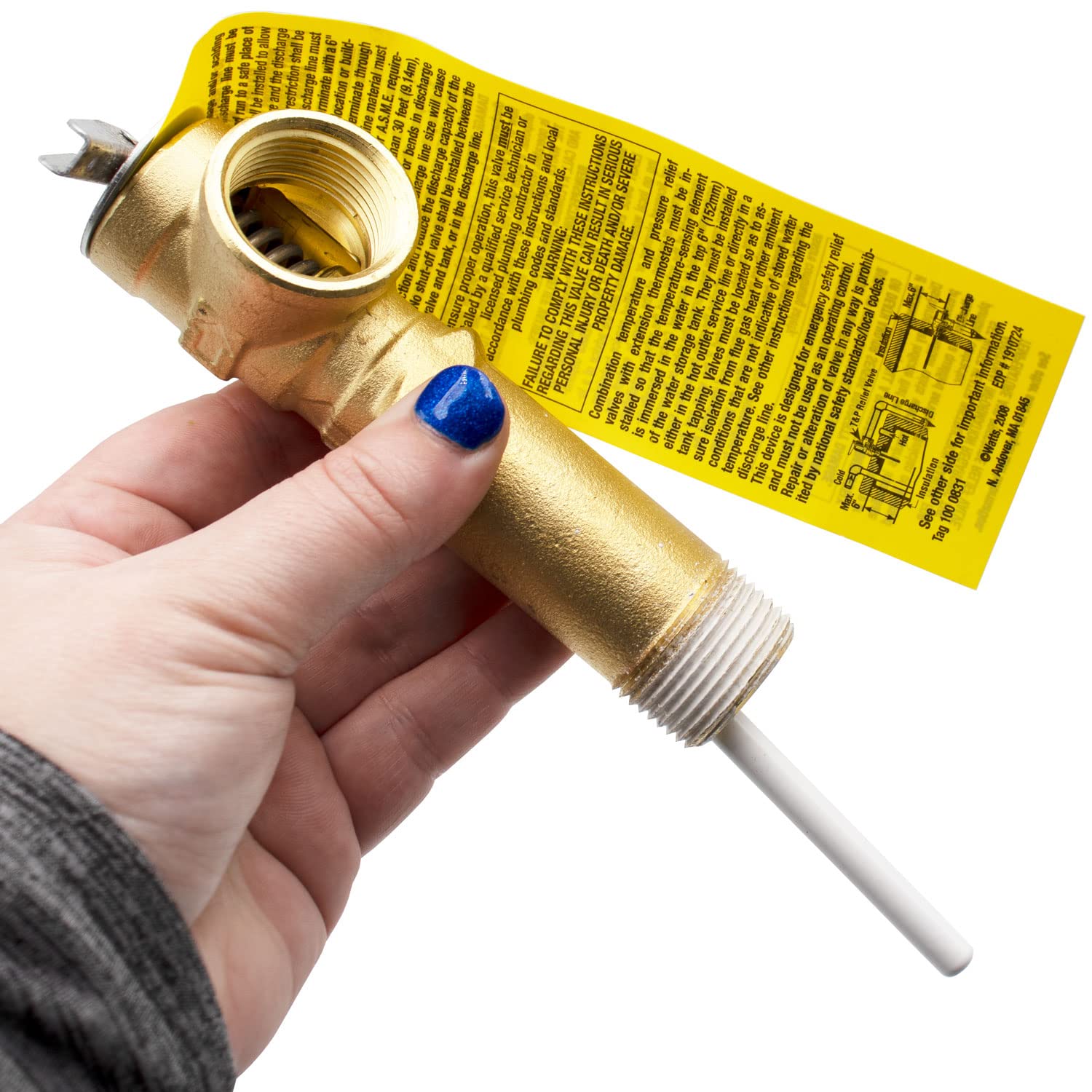

Supplying Demand SP12575B Water Heater Temperature and Pressure Relief Valve 3/4 Inch NPT Inlet and Outlet
Supplying Demand SP12575B Water Heater Temperature and Pressure Relief Valve 3/4 Inch NPT Inlet and Outlet
- Always search using the serial number of your water heater to make sure you select the correct valve. The Temperature and Pressure Relief Valve is designed to protect water heaters from overheating and over-pressurization. It is a component that is integral to the safe operation of the water heater. The valve features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Temperature Relief: 210 degree F (99 degree C), Pressure Relief Range: 75 to 150 psi (5.2 to 10.3 bar).
- Body length (inch): 5-1/4 | CSA Capacity (BTU/HR): 105,000 | Inlet thread size - NPT (inch): 3/4 | Maximum pressure setting (psi): 150 | Maximum temperature setting (Degrees F): 210 | Outlet thread size - NPT (inch): 3/4 | Overall length (inch): 7-1/4 | Sensor length (inch): 2 | Kit includes (1) AP20402G Temperature and pressure relief valve - forged
- Water heater parts and accessories should only be installed by qualified technicians.
- Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.
- SD products come in Supplying Demand packaging.
$49.99
Supplying Demand SP12575B Water Heater Temperature and Pressure Relief Valve 3/4 Inch NPT Inlet and Outlet—
$49.99
More Images
Supplying Demand SP12575B Water Heater Temperature and Pressure Relief Valve 3/4 Inch NPT Inlet and Outlet
- Always search using the serial number of your water heater to make sure you select the correct valve. The Temperature and Pressure Relief Valve is designed to protect water heaters from overheating and over-pressurization. It is a component that is integral to the safe operation of the water heater. The valve features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Temperature Relief: 210 degree F (99 degree C), Pressure Relief Range: 75 to 150 psi (5.2 to 10.3 bar).
- Body length (inch): 5-1/4 | CSA Capacity (BTU/HR): 105,000 | Inlet thread size - NPT (inch): 3/4 | Maximum pressure setting (psi): 150 | Maximum temperature setting (Degrees F): 210 | Outlet thread size - NPT (inch): 3/4 | Overall length (inch): 7-1/4 | Sensor length (inch): 2 | Kit includes (1) AP20402G Temperature and pressure relief valve - forged
- Water heater parts and accessories should only be installed by qualified technicians.
- Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.
- SD products come in Supplying Demand packaging.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Always search using the serial number of your water heater to make sure you select the correct valve. The Temperature and Pressure Relief Valve is designed to protect water heaters from overheating and over-pressurization. It is a component that is integral to the safe operation of the water heater. The valve features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Temperature Relief: 210 degree F (99 degree C), Pressure Relief Range: 75 to 150 psi (5.2 to 10.3 bar).
- Body length (inch): 5-1/4 | CSA Capacity (BTU/HR): 105,000 | Inlet thread size - NPT (inch): 3/4 | Maximum pressure setting (psi): 150 | Maximum temperature setting (Degrees F): 210 | Outlet thread size - NPT (inch): 3/4 | Overall length (inch): 7-1/4 | Sensor length (inch): 2 | Kit includes (1) AP20402G Temperature and pressure relief valve - forged
- Water heater parts and accessories should only be installed by qualified technicians.
- Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.
- SD products come in Supplying Demand packaging.
